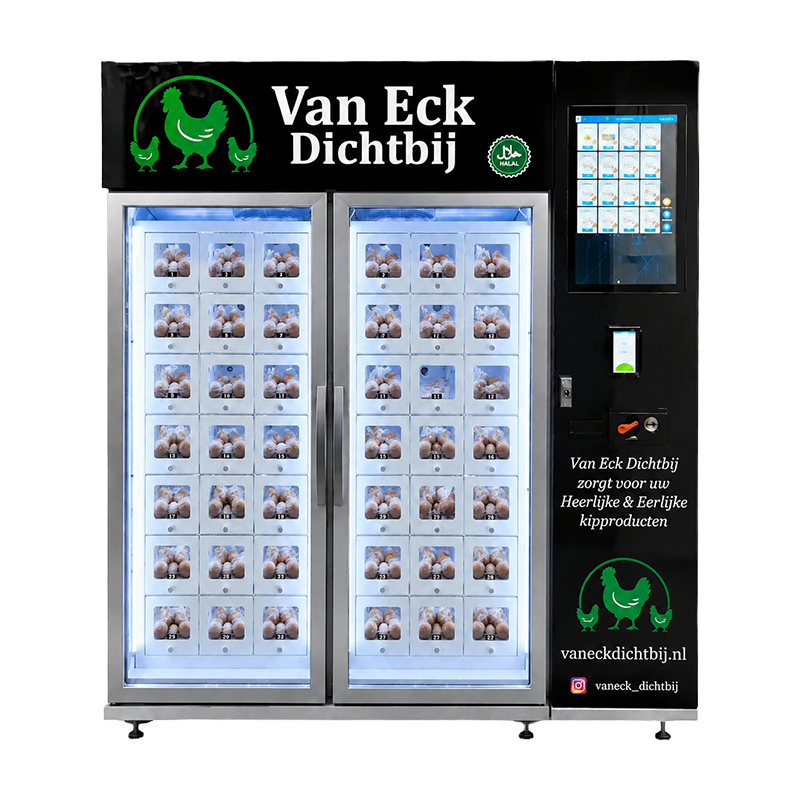

42-Locker Egg Vending Machine for Farm-Direct Sales
Egg Vending Machine with 42 Individual Pickup Lockers
Give every egg order a separate 160 × 150 × 470 mm compartment, then let customers select the pack on a 21.5-inch touchscreen and pay by card or coin.
Replace the Drop with a Dedicated Door.
The problem with conventional vending
Egg cartons should not tumble into a shared delivery tray or collide with another order. The packaging also varies by farm, egg count and carton material.
One loaded carton stays inside one locker
The selected door releases the customer’s compartment. Neighboring cartons remain in their own closed spaces.

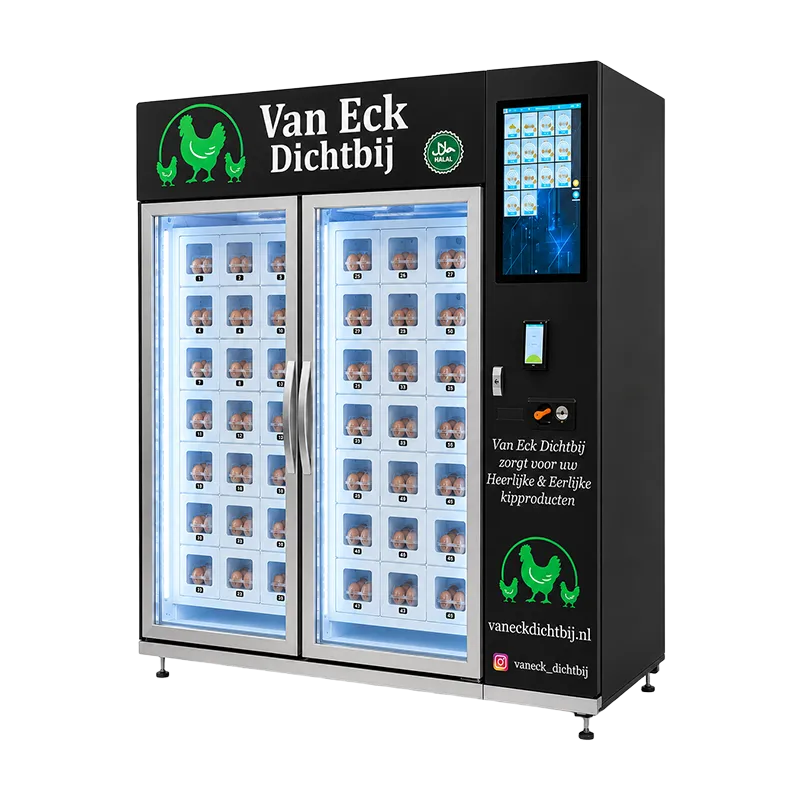

Test against a 160 × 150 × 470 mm envelope
The exact locker dimensions let the farm check carton width, height, depth and hand clearance before production. The machine does not imply a universal egg count per door.
The customer removes the pack by hand
There is no conventional free-fall delivery path. Breakage performance still depends on carton design, loading and customer handling.
Use the Same 42 Doors for a Deliberate Egg Assortment.
Pack quantity
Assign doors to compatible carton counts only after verifying the package fits the measured compartment and can be removed comfortably.
Egg size and grade
Use the touchscreen to distinguish sizes, grades or approved production categories without relying only on the carton viewed through the door.
Farm and batch information
Display supplied farm origin, packing date, batch reference, shelf-life information and any legally required product details.
A Four-Step Locker Journey.
Compare egg packs
Browse carton images and operator-supplied pack details on the touchscreen.
Select the product
Choose the available egg pack mapped to a stocked locker.
Pay by card or coin
Complete payment using the two confirmed hardware routes. Coin denominations require market configuration.
Open the assigned door
Collect the carton directly from its compartment without disturbing other orders.
Know Which Doors Need Refilling.
When the final software package is enabled, locker-level data can help farms operate the machine as a structured pickup point rather than a row of anonymous boxes.
- View stocked and available locker status remotely.
- Track sales by egg pack or batch.
- Receive low-stock and configured machine alerts.
- Update carton images, descriptions and farm information remotely.
- Set expiry dates, near-expiry rules and expired-item stop-sale.
- Manage multiple machines through the same backend.

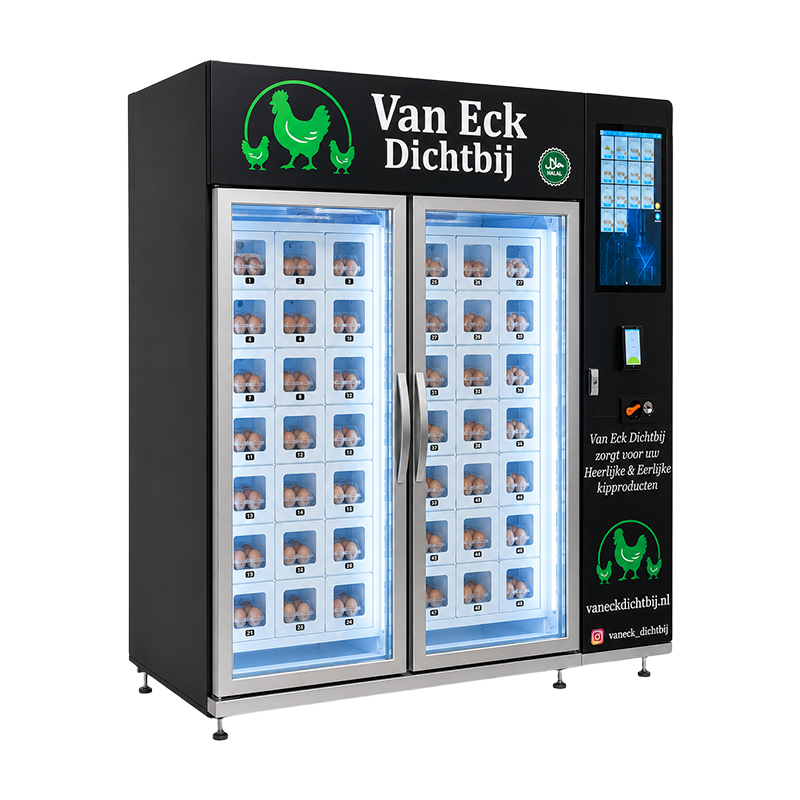

Turn a Confirmed Order into a Locker Collection.
The referenced WEIMI software supports code or QR pickup for pre-sold orders. Confirm inclusion in the final software package before offering this workflow.
- Customer places an order through the farm’s approved sales channel.
- Operator loads the assigned egg carton into an available locker.
- The system issues the configured collection credential.
- Customer opens only the assigned compartment at pickup.
42-Locker Egg Retail Configuration.
The physical locker facts are confirmed. Cooling, connectivity and advanced software functions must be documented for the ordered unit.
| Machine type | Egg locker vending machine |
|---|---|
| Dimensions | W166 × D71 × H217 cm |
| Locker count | 42 individual compartments |
| Locker size | 160 × 150 × 470 mm per compartment |
| Actual egg capacity | Depends on egg-carton size and egg count; carton samples required |
| Touchscreen | 21.5-inch |
| Payment | Card reader and coin acceptor; optional |
| Cooling | 3-20℃ |
| Exterior | Custom branded sticker/wrap shown in the real deployment |
| Software | Inventory, expiry, remote management and preorder pickup functions require final configuration confirmation |
Built for Local Egg Sellers with Real Pickup Traffic.
Egg farms and poultry producers
Sell selected carton formats under the farm’s own branding and provide a separate pickup door for each stocked pack.
Farm shops and roadside stores
Add a self-service collection point where customers already buy local food, subject to site and food-storage requirements.
Community food retailers
Offer locally sourced cartons through a clearly labeled locker layout with card and coin payment.
Send the Actual Egg Cartons before Finalizing the Machine.
- Carton width, height, depth and total loaded weight
- Egg count, size/grade and packaging material
- Required storage temperature and local food rules
- Farm origin, batch and shelf-life fields for display
- Destination card terminal and accepted coins
- Preorder/pickup-code workflow and branding files
Egg Vending Machine FAQ
How many compartments does this machine have?
It has 42 individual lockers. Each locker measures 160 × 150 × 470 mm.
How many eggs fit in each locker?
There is no universal egg count. Capacity depends on the carton dimensions, egg count, packaging material and removal clearance. The actual cartons must be tested.
How are egg cartons dispensed?
The selected locker door releases for direct hand collection. The carton does not follow a conventional free-fall vending path.
Does this machine include refrigeration?
Cooling has not yet been confirmed for this exact 42-locker unit. The refrigeration system and temperature range must be documented before any refrigerated-egg claim is published.
Which payment methods are confirmed?
The confirmed hardware includes a card reader and coin acceptor. Coin change and other payment methods are not claimed.
Can customers collect eggs ordered online?
The related WEIMI software supports code or QR collection workflows, but this function must be included and verified in the final software configuration.
Match 42 Lockers to Your Egg Cartons and Sales Workflow.
Send carton samples, storage requirements, destination payment details, farm product information and branding files for compatibility review.
Request an Egg Locker Configuration
