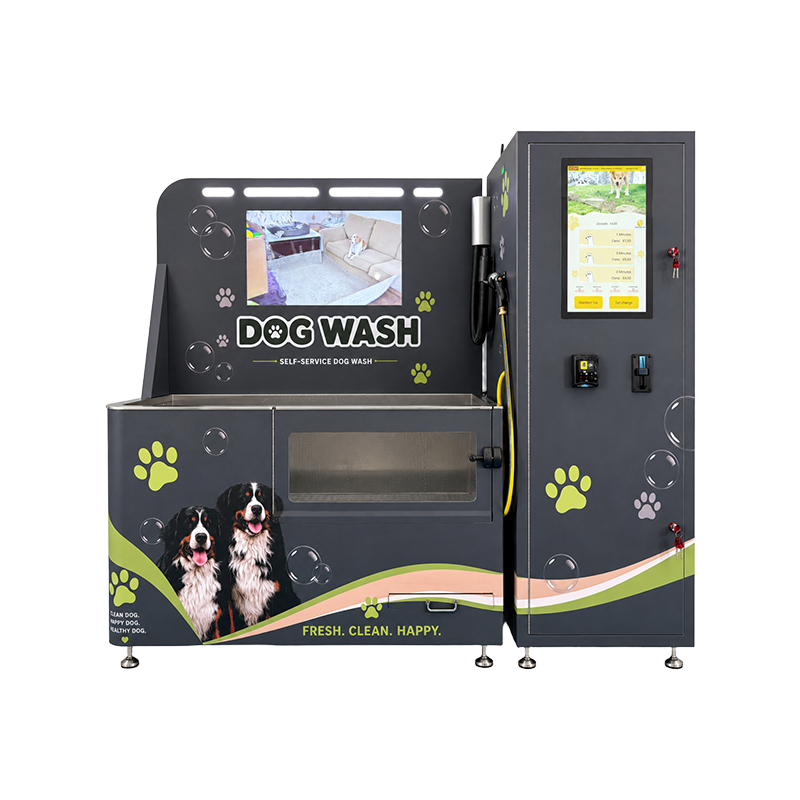

Apartment Community Self-Service Dog Wash Station
Apartment Community Self-Service Dog Wash Station
Give residents a dedicated place to wash, condition, treat and dry their dogs while property teams monitor liquid levels, machine status and wash activity from the cloud.
A Clear Wash Journey that Does Not Depend on On-Site Staff.

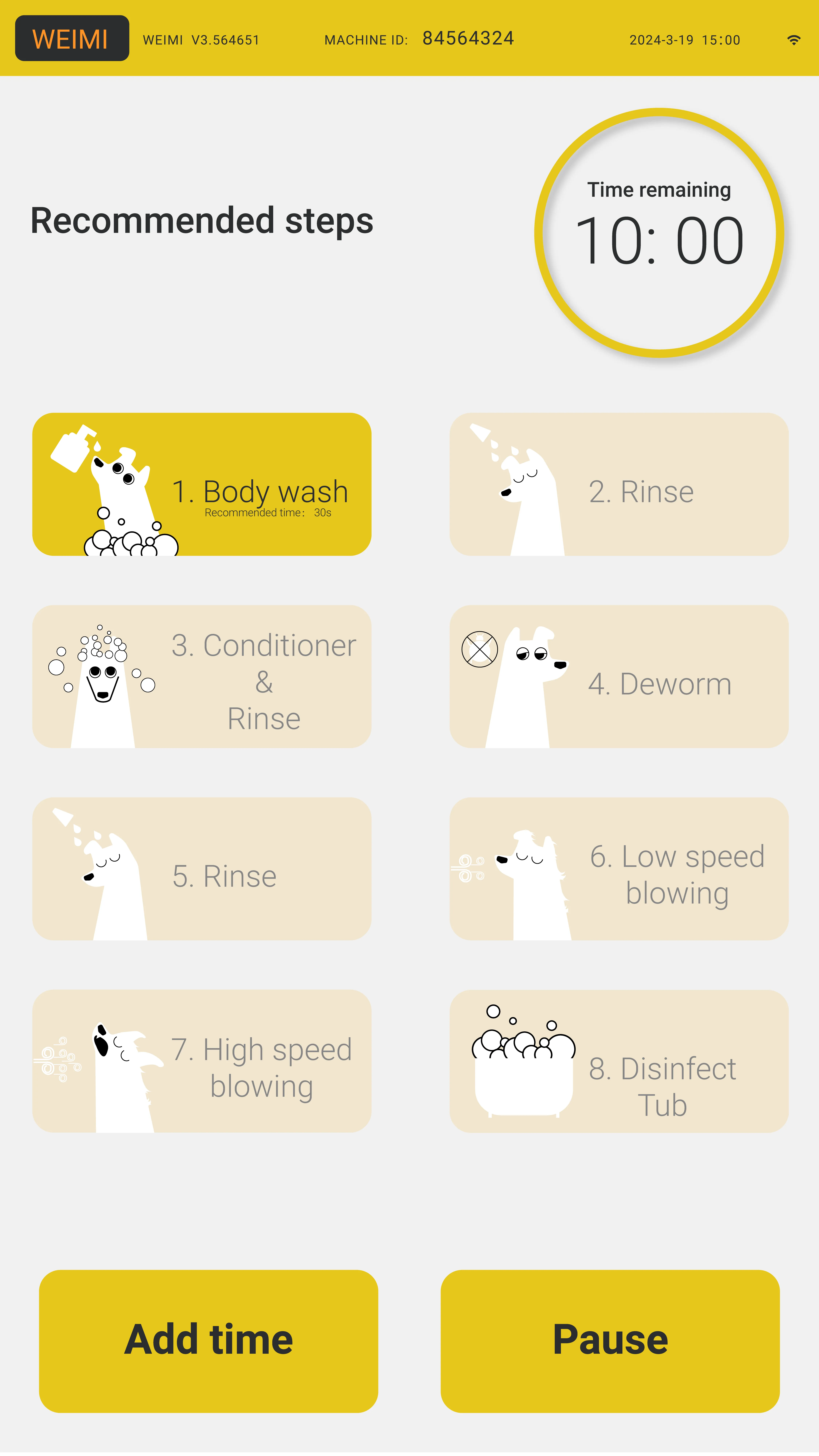

The touchscreen guides the resident through the configured service while physical controls keep washing, temperature and drying within reach.
From muddy paws to a finished wash
The station brings preparation, four liquid choices, rinsing and drying into one resident-facing bay.
Disinfect before purchase
The property operator can configure a free disinfectant period, such as 10 seconds. The resident activates it to clean the wash area before starting a paid session; it is not automatic.
Select and control the session
The 21.5-inch waterproof touchscreen presents the configured package, accepts the selected payment method and allows start, pause or added time.
Wash with separated liquids
Dedicated circuits deliver shampoo, conditioner, flea-and-tick solution and disinfectant without combining their storage containers.
Rinse and dry
Residents adjust water temperature with the manual control, rinse with the shower head and choose high or low dryer airflow for the dog's coat.
Design the Handoff between One Resident and the Next.
A community wash room needs more than a tub. This configuration gives property teams specific tools for pre-use cleaning, hair control and consumable monitoring.
Free disinfectant time
Set a short free-use period in the backend so each resident can disinfect the bay before purchasing a wash.
Three filtration layers
The filter sequence captures larger hair, finer fur and debris to reduce buildup in the drainage path. Routine cleaning remains required.
Level sensors and email alerts
Each liquid canister is monitored so the property team can schedule refills before a wash liquid runs out.
Four Care Liquids, Warm-Water Control and Drying in One Station.

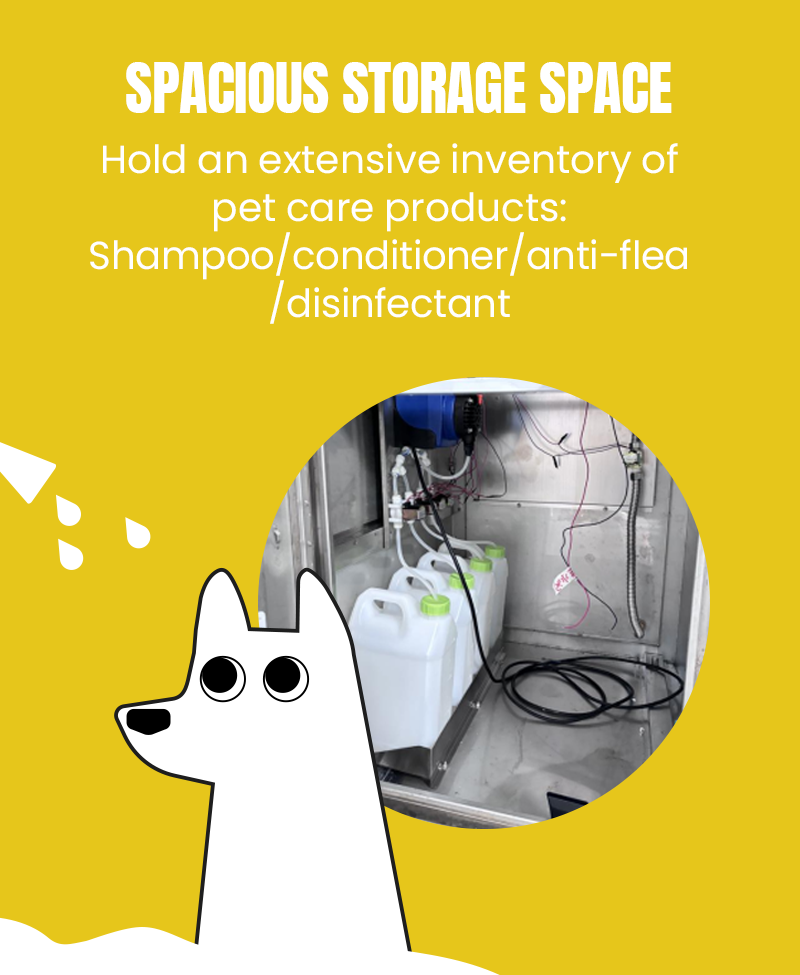

Four independent 5 L canisters and pumps
Shampoo, conditioner, flea-and-tick solution and disinfectant each have a dedicated container and pump. This creates a clear refill map for maintenance staff and a defined wash menu for residents.

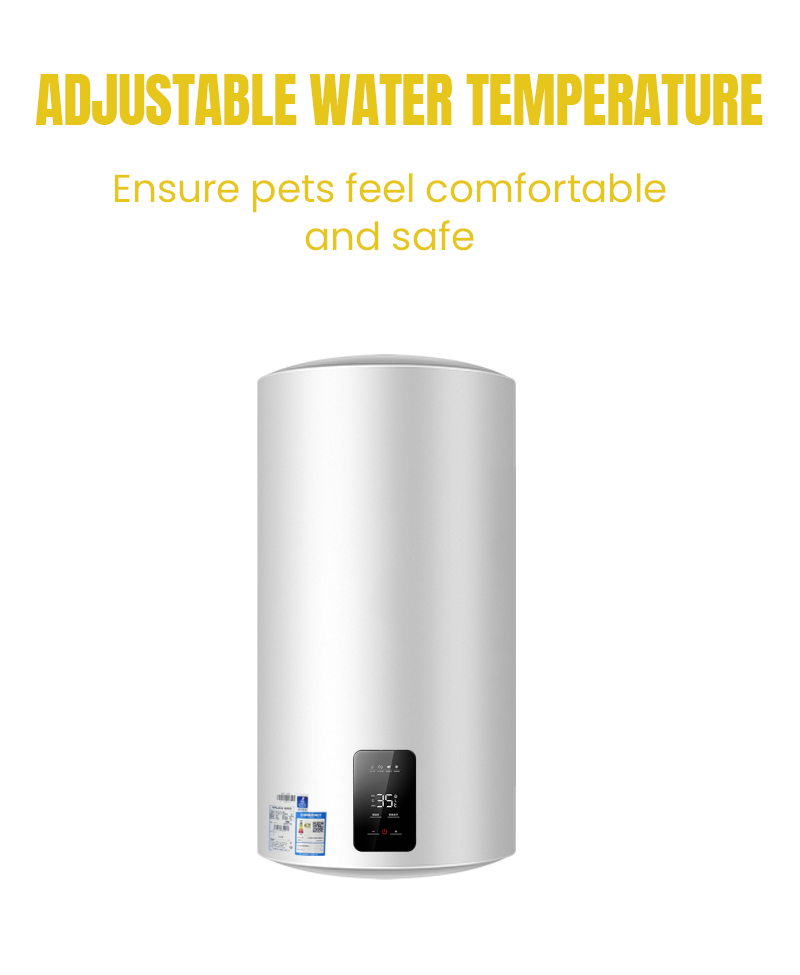

Adjustable water temperature
A built-in hot-water system and manual faucet control let users select wash temperature. Heater capacity must be confirmed for the final order.
High/low dryer airflow
Two dryer speeds help residents adapt the finishing step for different dog sizes and coat types.
Secure, controllable session
A collar hook helps restrain the dog. The user can pause or stop the process through the touchscreen or dedicated control.
Dual-screen communication
The 21.5-inch touchscreen handles the wash session. A separate 32-inch screen can show instructions, property notices, branding or approved promotional media.
Manage the Amenity without Checking Every Canister in Person.
The dedicated dog-wash backend supports remote oversight for a single community or a multi-property portfolio.
- Review wash usage and sales data by machine.
- Check liquid levels and receive low-liquid email alerts.
- Receive configured malfunction notifications.
- Set wash packages, session time and free disinfectant time.
- Update touchscreen information and screen media remotely.
- Manage multiple dog wash stations from one cloud system.
Specifications for Amenity Planning.
The exterior sticker can be customized for the property. It changes appearance, not the underlying wash hardware or software.
| Dimensions | W209 × D63 × H180 cm |
|---|---|
| Wash interface | 21.5-inch waterproof touchscreen; Android 11 |
| Media display | 32-inch screen for guidance, notices and media |
| Liquid hardware | 4 independent pumps; 4 × 5 L canisters with level sensors |
| Liquid positions | Shampoo, conditioner, flea-and-tick solution and disinfectant |
| Disinfection setting | Operator-configured free usage time before purchase; activated by the resident |
| Water | Built-in hot-water system, shower head and adjustable manual temperature control; tank capacity requires confirmation |
| Drying | High/low two-speed blower; final heat settings require confirmation |
| Filtration | Three-layer hair and debris filtration |
| Connectivity | Wi-Fi, 3G/4G SIM and LAN |
| Protocol | MDB / RS232 |
| Payment | Configurable bill, coin and cashless hardware; provider compatibility depends on destination market |
| Exterior | Custom sticker/wrap option; pictured black, green and pet-themed treatment |
| Shelter | Separate outdoor shelter not included |
Plan the Room, the Maintenance Route and the Resident Rules Together.
Site and utilities
- Water supply and pressure
- Drainage and hair-filter access
- Power and destination electrical standard
- Ventilation and splash management
- Non-slip access and handler clearance
Operating responsibilities
- Approved liquids and dosing settings
- Canister refill schedule
- Tub and filter cleaning routine
- Payment and refund procedure
- Resident instructions and emergency contact
Apartment Dog Wash Station FAQ
How does this page differ from the general self-service dog washing machine page?
The hardware is the same. This page addresses apartment and community deployment: resident guidance, shared-space sanitation, property-team refills, remote monitoring and amenity-room planning.
Is disinfection automatic?
No. The operator configures a free disinfectant duration, for example 10 seconds. The resident activates it before purchasing the wash and uses it to clean the wash area.
How does the property team know when liquids need refilling?
Level sensors monitor the four canisters, and configured email alerts notify the operator when supplies are low.
Can one team manage stations across several properties?
The documented cloud system supports multiple machines in one backend, including usage, liquid levels, settings and alerts.
What must an apartment building prepare?
The project requires confirmed water, drainage, power, ventilation, splash control, safe access and maintenance clearance. The property should also define cleaning, refilling and resident support procedures.
Can the exterior match the community brand?
Yes. The sticker or wrap can be customized. The visual treatment does not change the underlying wash system.
Configure a Dog Wash Station for Your Residential Property.
Send the amenity-room drawing, destination country, utilities, expected dog sizes, payment requirements, property branding and number of locations for configuration review.
