Commercial Self-Service Dog Wash Station for Indoor Pet Businesses

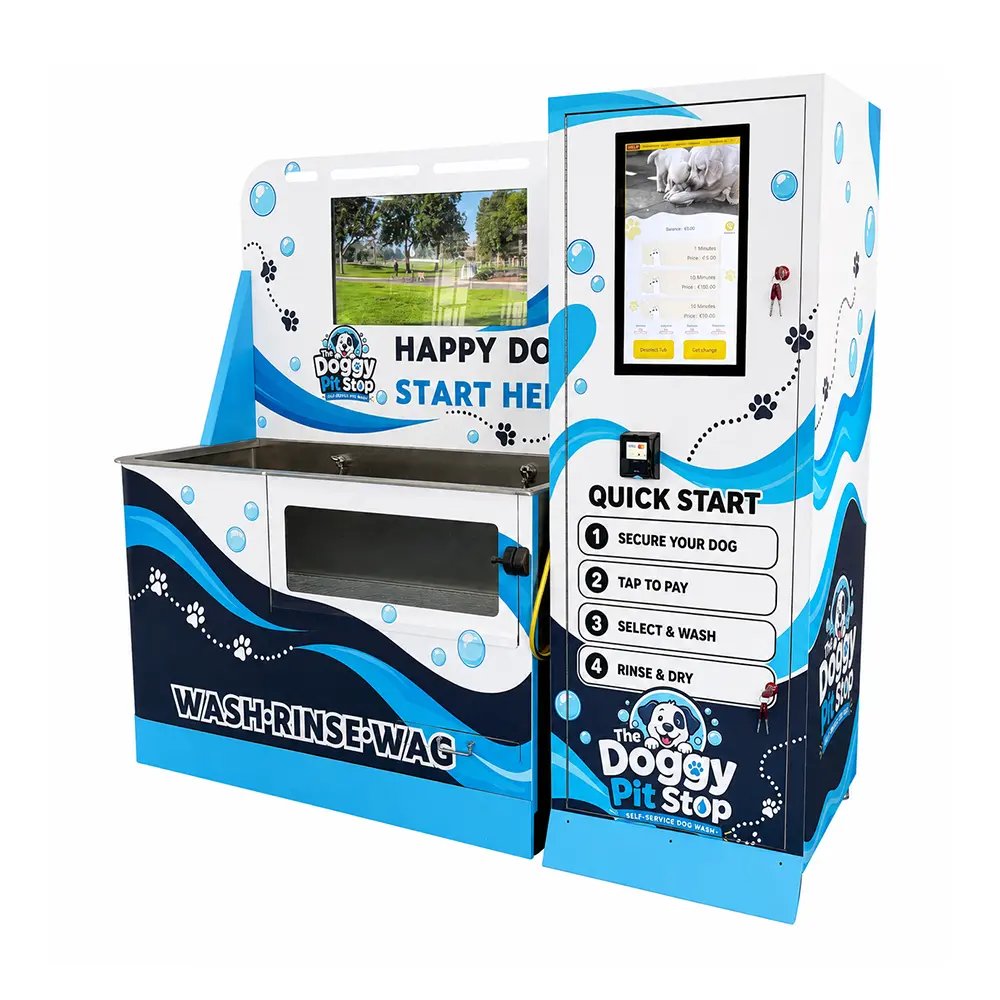

Commercial Self-Service Dog Washing Machine with Four-Liquid Care System
Give pet owners a guided wash from one station: adjustable warm water, four independently pumped liquids, two-speed drying, customer-activated free pre-wash disinfection time and touchscreen session control.

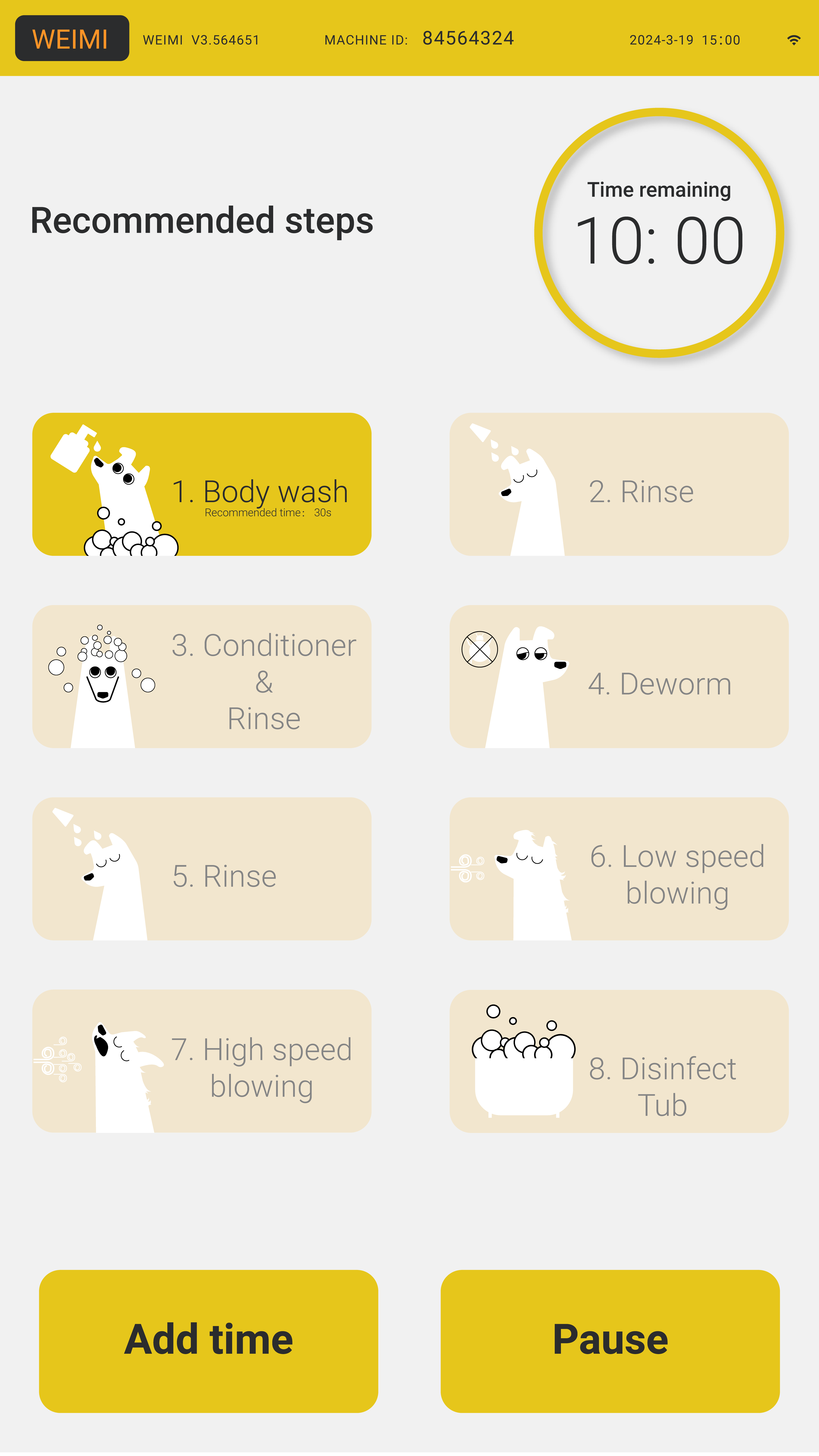

One Interface Guides the Customer from Pre-Wash Cleaning to Drying.
The 21.5-inch waterproof touchscreen presents wash packages, payment and session controls. Operators can set a free disinfectant period, such as 10 seconds, so the customer can actively disinfect the wash area before starting the paid wash.
Clean the wash area
Activate the operator-set free disinfectant time before purchase.
Shampoo
Select shampoo through its dedicated pump and liquid circuit.
Condition or treat
Apply conditioner or the configured flea-and-tick solution.
Control the water
Use the shower head and manual temperature control.
Choose airflow
Finish with high- or low-speed drying for the dog's coat.
Four Liquids Stay Separate from Tank to Spray.
Four dedicated pumps and four 5 L canisters
Shampoo, conditioner, flea-and-tick solution and disinfectant each use an independent pump and container. Operators have a clear refill structure, and customers select only the required wash step.
Liquid-level sensing
Sensors monitor remaining liquid and can trigger email alerts before a canister runs empty.
Adjustable warm water
The built-in hot-water system and manual faucet control let customers adjust wash temperature. Final heater capacity requires confirmation because the sources differ.
Two-speed dryer
High and low airflow settings support different dog sizes and coat types.
Three-layer hair filtration
Successive filters capture larger hair, finer fur and debris to reduce drain blockage.
Customer safety controls
A collar hook helps secure the dog. Customers can start, pause, add time or use the dedicated stop control during the session.
Monitor Sessions, Liquid Levels and Machine Status Remotely.
This dedicated dog-wash cloud system is separate from WEIMI vending retail software.
- Set the free pre-purchase disinfectant duration.
- Manage multiple dog wash machines from one backend.
- Update touchscreen packages and customer instructions remotely.
- Upload promotional content and branding to the screens.

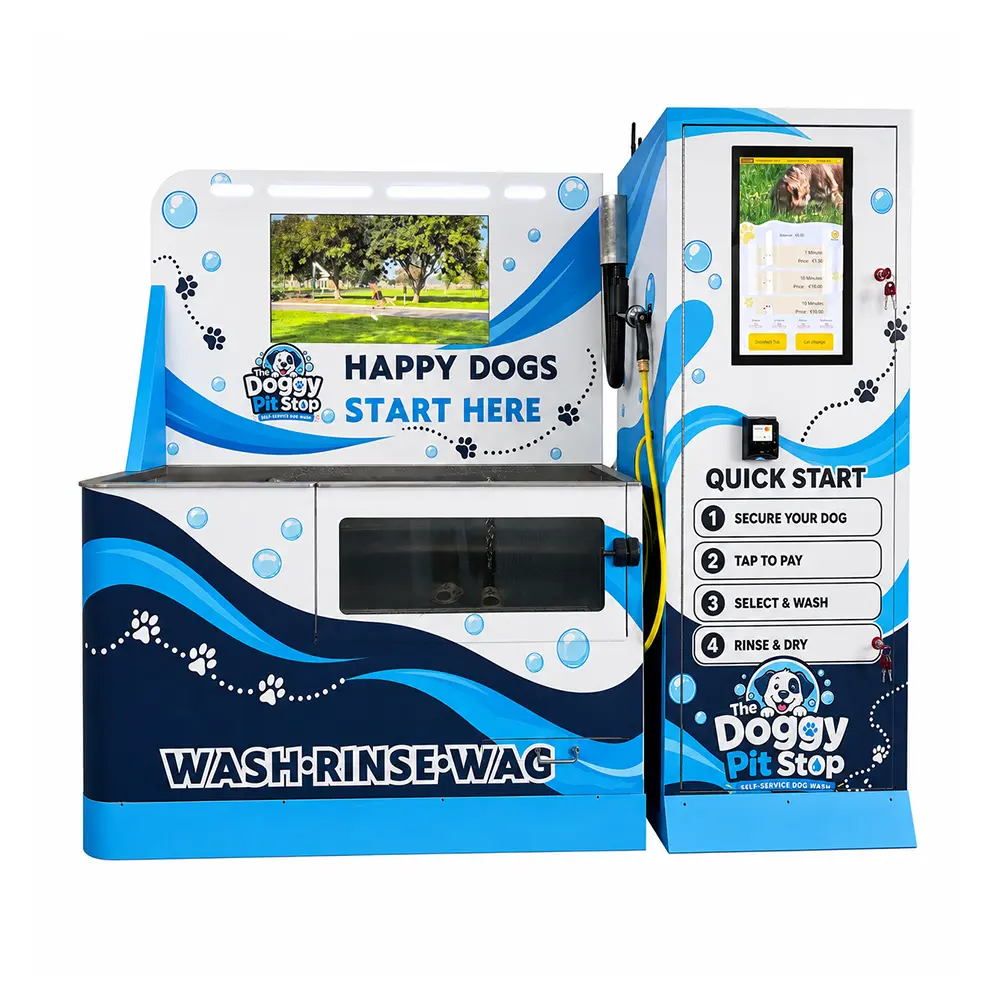

Hardware Built around Washing, Drying and Unattended Operation.
This machine does not include the separate outdoor shelter shown on the related outdoor model. That is a configuration distinction, not its central selling point.
| Dimensions | W209 × D63 × H180 cm |
|---|---|
| Customer interface | 21.5-inch waterproof touchscreen |
| Media display | 32-inch screen for instructions, branding and promotions |
| Operating system | Android 11 |
| Liquid system | 4 independent pumps; 4 × 5 L canisters |
| Liquid positions | Shampoo, conditioner, flea-and-tick solution and disinfectant |
| Disinfection control | Operator-configured free usage time before purchase; customer activates it (for example, 10 seconds) |
| Liquid monitoring | Level sensor for each canister with configured email alerts |
| Water system | Built-in hot-water system, shower head and manual temperature control; heater capacity to be confirmed |
| Drying | High/low two-speed blower; final heat settings to be confirmed |
| Drain protection | Three-layer hair and debris filtration |
| Connectivity | Wi-Fi, 3G/4G SIM card and LAN |
| Protocol | MDB / RS232 |
| Payment | Configurable coin, bill and cashless hardware; provider compatibility depends on market |
| Outdoor shelter | Not included |
Put Self-Service Washing Where Pet Owners Already Need It.
Pet stores
Add washing beside existing food, grooming and pet-care retail, including access beyond staffed grooming appointments where permitted.
Grooming salons
Offer a customer-operated option for routine washing while staff focus on full grooming services.
Apartments and communities
Move washing out of residential bathrooms into a managed pet-care area with defined cleaning and refill procedures.
Dog parks and service areas
Support cleaning after muddy walks or travel, subject to shelter, water, drainage, power and safe access.
The Machine Still Needs a Properly Planned Wash Site.
- Confirm water pressure, drainage, power and destination electrical standards.
- Provide ventilation, splash management and safe non-slip access.
- Allow handler movement and service access around the machine.
- Approve liquids, dosing ratios, refill procedures and local labels.
- Confirm payment terminals, network coverage and cloud access.
- Define routine tub, filter, liquid and equipment inspections.
Self-Service Dog Washing Machine FAQ
How does the free disinfection function work?
The operator sets a free disinfectant duration in the backend, for example 10 seconds. Before purchasing a wash, the customer activates this free time to dispense disinfectant and clean the wash area. It is not an automatic cycle.
What liquids does the machine dispense?
Four separate 5 L canisters and pumps are assigned to shampoo, conditioner, flea-and-tick solution and disinfectant. Buyers approve the actual liquids, dosing and labels.
How are low liquids detected?
A level sensor monitors each canister, and the system can email the operator when a refill is required.
Can customers control the wash?
Yes. The touchscreen supports package selection, payment, start, pause and adding time. A dedicated stop control and manual water-temperature control remain available during use.
Does it include drying?
Yes. The configuration includes a two-speed blower with high and low airflow. Confirm final drying heat settings for the ordered machine.
Which payment methods are available?
Coin, bill and cashless hardware can be configured. Terminal brands, e-wallets, currencies and provider compatibility require market confirmation.
Specify the Wash Programs, Payments and Site Requirements.
Send the venue plan, destination country, expected dog sizes, utilities, liquids, payment methods and branding needs so the system can be configured for the real operating environment.
